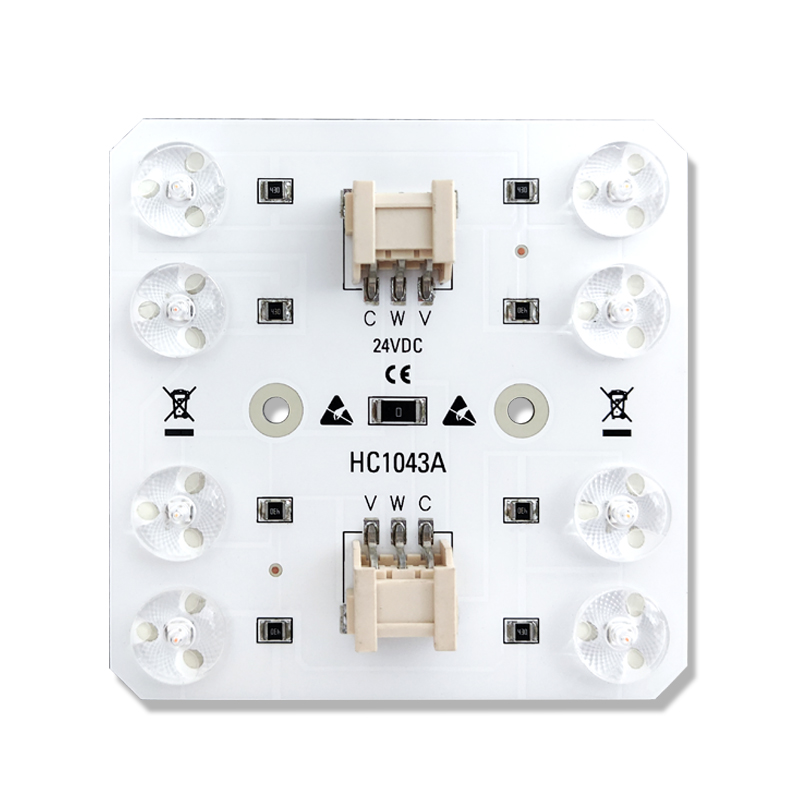

The Tunable Square LED Module is an advanced lighting solution designed to offer adjustable color temperature and brightness. This module is perfect for applications requiring both warm and cool light settings, such as retail displays, architectural lighting, and ambient lighting. Its compact square design allows for easy integration into various installations, while the tunable feature provides dynamic lighting control, from warm white to cool white, creating a flexible and comfortable environment.
· Input Voltage: DC 24V (model-dependent)
· Power Consumption: 3W / 5W / 7W per module (model-specific)
· LED Type: SMD 2835
· Luminous Flux: 200 - 600 lumens per module
· Beam Angle: 120° for even light distribution
· Color Temperature (Tunable Range):
o Warm White: 2700K-3000K
o Cool White: 6000K-6500K
o Adjustable range from 2700K to 6500K
· Dimming: 0-100% via compatible dimming controllers (DALI, PWM or TRIAC dimming systems)
· Operating Temperature: -20°C to 50°C (-4°F to 122°F)
· Lifespan: 50,000 hours
· Ingress Protection Rating:
o IP20 (for indoor use)
o IP65 (optional for outdoor use)
Certifications: CE, RoHS
