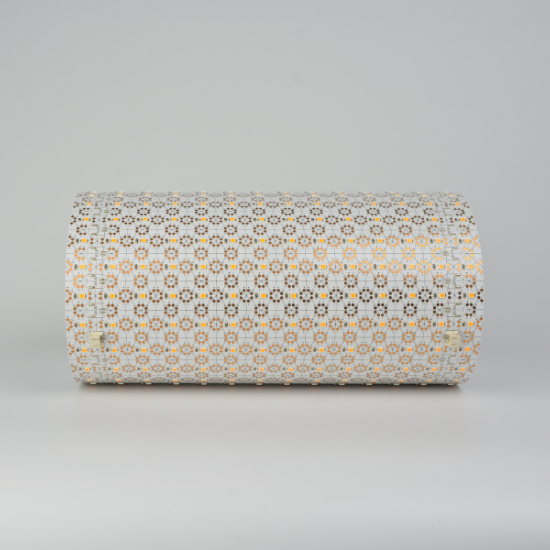

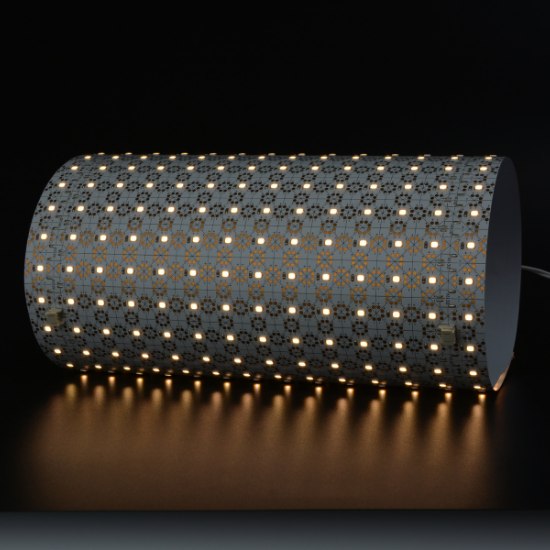

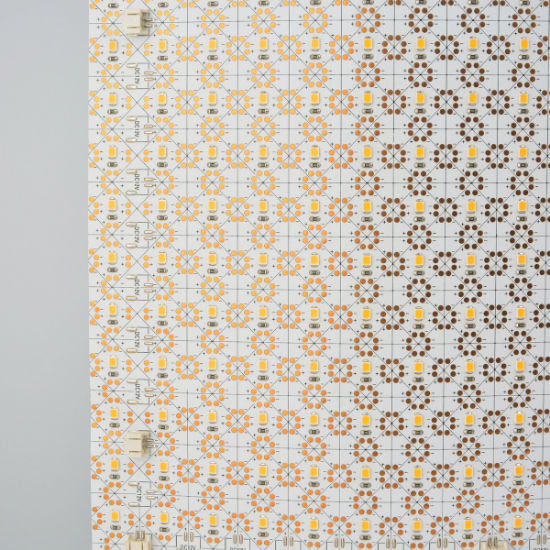

The Soft LED Sheet is an ultra-flexible, lightweight lighting solution designed for a wide range of applications where traditional rigid LED panels are not practical. The sheet can be easily bent, cut, or shaped to fit custom installations, making it ideal for backlighting, display lighting, and architectural lighting. With its thin, soft structure, this LED sheet provides even illumination across surfaces, ensuring no dark spots or shadows. It is suitable for both indoor and outdoor use and is energy-efficient, providing bright, uniform light with minimal power consumption.
· Dimensions: Customizable; available in sheets or rolls
· Thickness: 0.2mm
· Lighting Source: High-efficiency SMD2835 LEDs
· Input Voltage: 12V or 24V (depending on model)
· Power Consumption: 10W to 40W per square meter (model-dependent)
· Luminous Flux: 1000 - 4000 lumens per square meter
· Color Temperature Options:
o 3000K (Warm White)
o 4000K (Neutral White)
o 6000K (Cool White)
o RGB (Optional)
· Beam Angle: 120° for wide and even light distribution
· LED Lifespan: 50,000 hours
· Ingress Protection Rating:
o IP20 for indoor use
o IP65 for outdoor/waterproof versions
· Certifications: CE, RoHS
