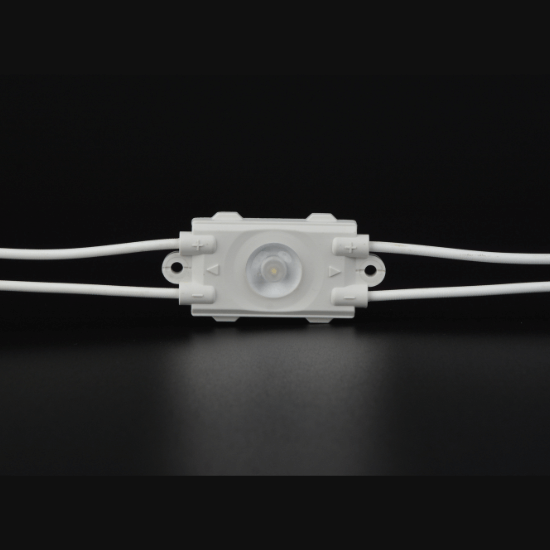

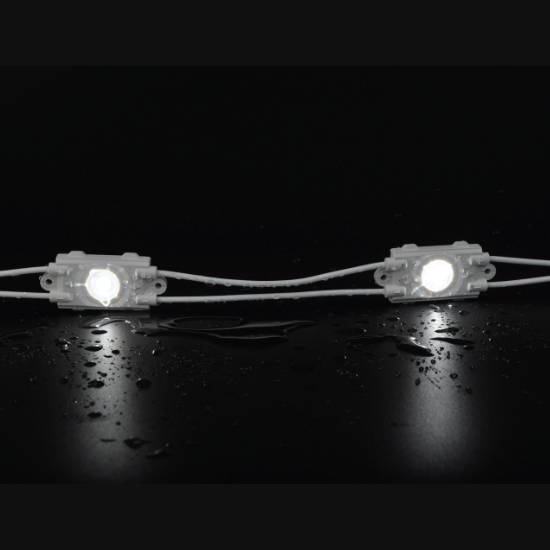

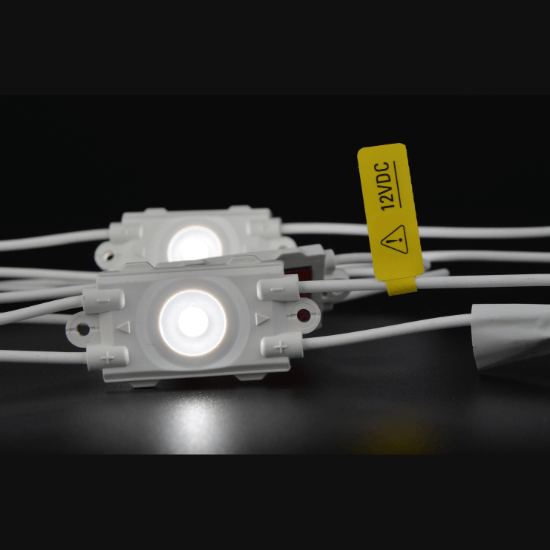

The Single LED Module is a compact and versatile lighting solution designed for a wide range of applications, including signage, backlighting, and general illumination. These modules are equipped with high-efficiency LEDs that deliver bright, uniform light. Their small size makes them ideal for installations in confined spaces or applications requiring precise light placement. Single LED modules are durable and energy-efficient, making them suitable for both indoor and outdoor use.
· Dimensions: Standard sizes vary (typically 30mm x 10mm x 5mm)
· Lighting Source: High-efficiency SMD LEDs
· Input Voltage: 12V or 24V (model-dependent)
· Power Consumption: 0.72W to 3W per module
· Luminous Flux: 100 - 300 lumens per module
· Color Temperature Options:
o 3000K (Warm White)
o 4000K (Neutral White)
o 6000K (Cool White)
· Beam Angle: 160° for wide and even light distribution
· LED Lifespan: 50,000 hours
· Ingress Protection Rating:
o IP20 for indoor use
o IP65 for outdoor/wet locations
· Certifications: CE, RoHS
