Edgelit Lighting

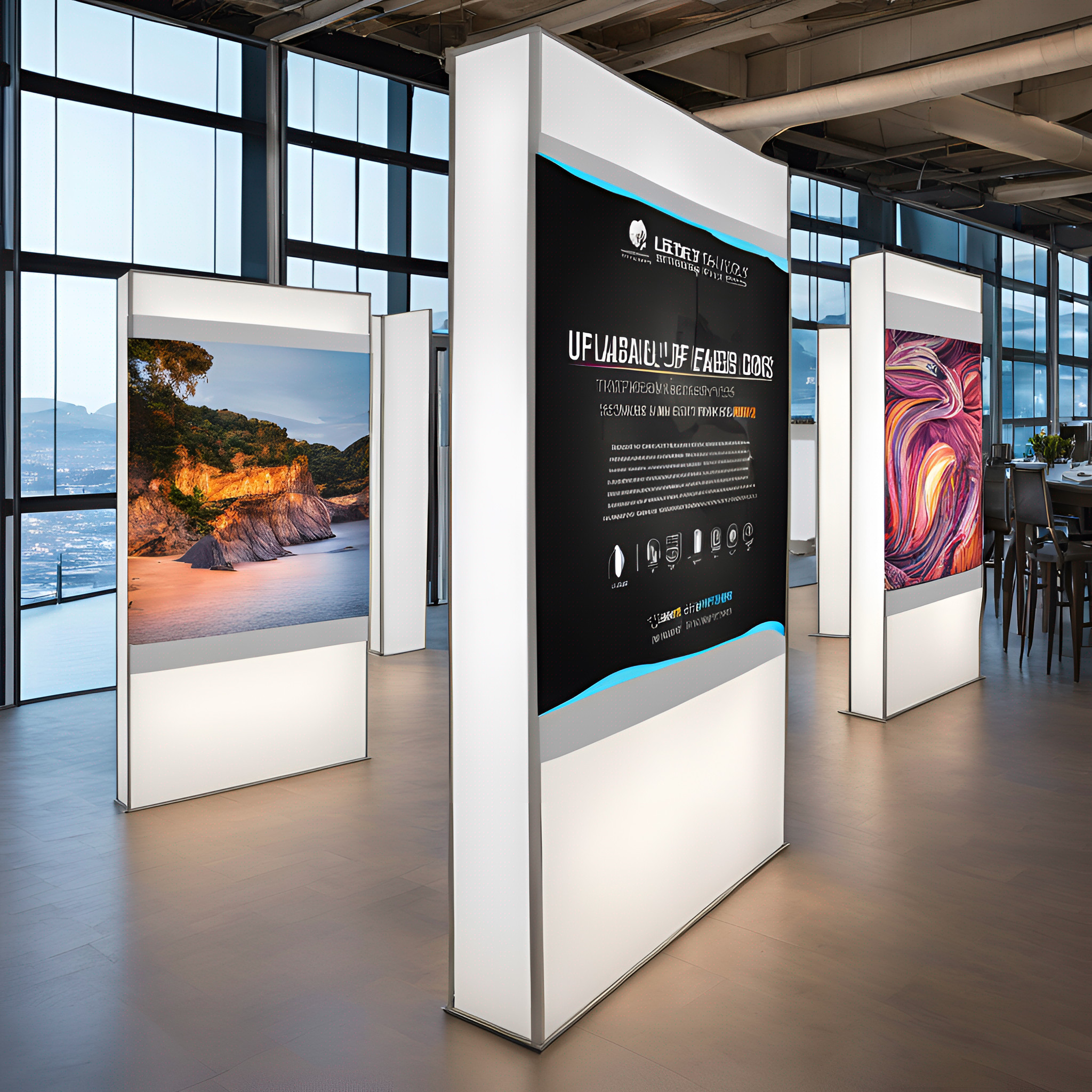

The Edge-lit LED Module is designed to provide uniform illumination by emitting light from the edges of a light guide or diffuser panel. This technology is ideal for applications requiring thin and sleek lighting solutions, such as backlighting for signage, light boxes, displays, and architectural installations. Edge-lit modules offer high brightness with energy-efficient performance while maintaining a slim profile, making them suitable for various modern lighting needs

· Input Voltage: DC 12V / 24V

· Power Consumption: 7.2W /12W /14.4W / 24W per module (model-dependent)

· LED Type: SMD 3535

· Luminous Flux: 720-2400 lumens per module

· Beam Angle: 15° - 45° (narrow beam for edge lighting)

· Color Temperature:

o Warm White: 2700K-3000K

o Neutral White: 4000K-4500K

o Cool White: 6000K-6500K

· Operating Temperature: -20°C to 50°C (-4°F to 122°F)

· Lifespan: 50,000 hours

· Ingress Protection Rating:

o IP20 (for indoor use)

o IP65 (optional for outdoor applications)

· Certifications: CE, RoHS
