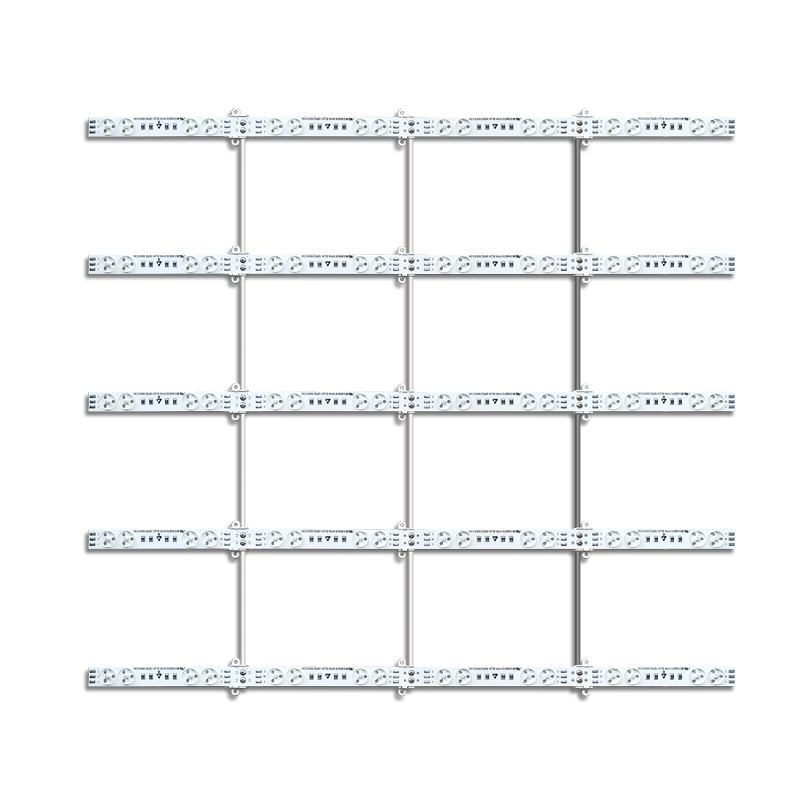

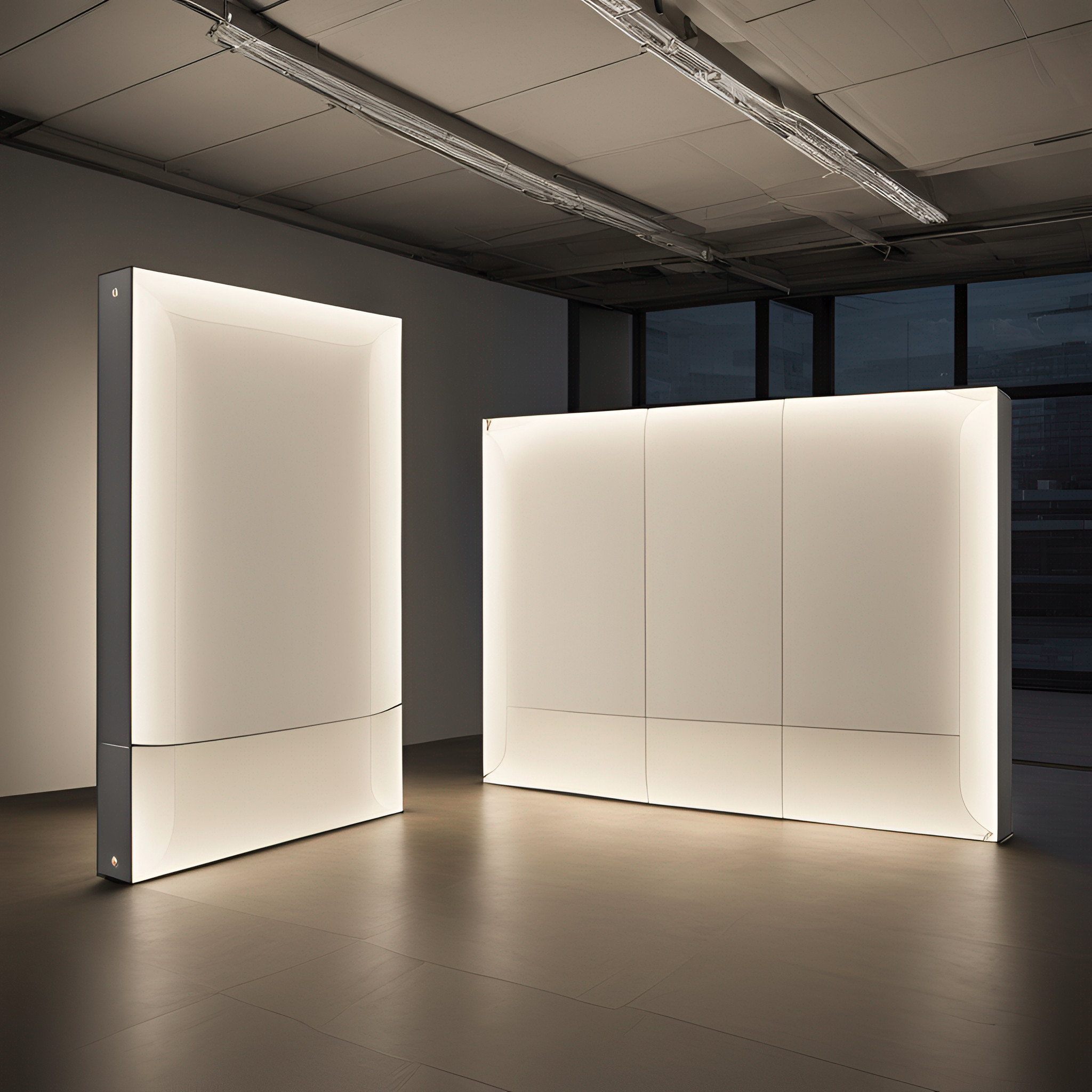

The Tunable CCT LED Lattice is an advanced backlighting system designed for projects requiring adjustable color temperature (CCT) lighting. This lattice structure consists of interconnected LED modules that allow for smooth transitions between Warm White, Neutral White, and Cool White tones, offering versatility and precision in lighting control. Ideal for light boxes, signage, architectural projects, and ambient lighting, the Tunable CCT LED Lattice provides uniform illumination with customizable white light to suit different environments and preferences.
Standrad Size:500*16.8*16.mm
LED Qty: 12LEDs
Input Voltage: DC 24V
Power Consumption: 3W / 5W / 6W per module (depending on model)
LED Type: SMD 2835
Luminous Flux: 390-660 lumens per module
Beam Angle: 160° for optimal light coverage
Color Temperature Range (CCT): 2700K (Warm White) - 6500K (Cool White)
Dimming Control: Compatible with CCT controllers for brightness and color temperature adjustments
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Lifespan: 50,000 hours
Certifications: CE, RoHS
